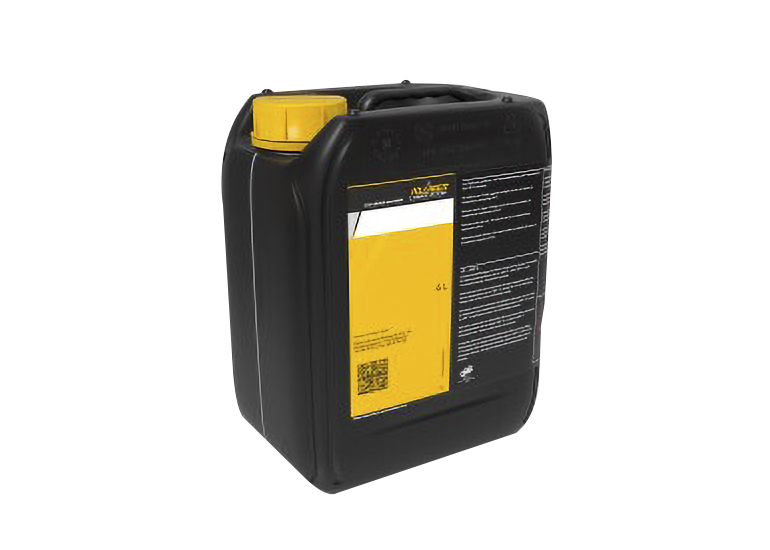

KLUBERFOOD NH1 CX 4-220

Adhesive chain oil for the food-processing industry.

Operators and OEMs of food machines have to meet constantly growing requirements: failure-free operation, reduced downtime and, most importantly, the prevention of food contamination. This cannot be fully attained with conventional chain oils.

Klüberfood NH1 CX 4-220 is an efficient lubricant for chains operating at room temperature. Due to a unique combination of high-viscosity oil and carrier fluid, the oil is adhesive and at the same time has good penetration properties to extend relubrication intervals and achieve good chain life.

Klüberfood NH1 CX 4-220 is a fully synthetic chain oil that was especially developed for the lubrication of overhead chains in slaughterhouses and meat production areas. It can also be used for applications in the chocolate industry or other food-processing sectors.
This product can be applied by brush or through centralised lubrication systems. However, we recommend not to leave the oil in the centralised lubrication system for a long time without running.
Relubrication should be performed at temperatures <60 °C or after the chain has cooled down.

Good adhesiveness and penetration properties of the oil help avoid drip-off
Good antiwear behaviour of the oil leads to longer chain life
Easy application at room temperature
NSF H1 registration for increased process reliability
ISO 21469-certified - supports compliance with the hygienic requirements in your production plant.

Characteristics	Klüberfood NH1 CX 4-220
Article number	050133
Composition, solvent	synthetic isoparaffin
Composition, type of oil	ester oil , synthetic hydrocarbon oil
Colour space	yellow
Service temperature, lower limit	-40 °C
Service temperature, upper limit	85 °C
NSF H1 registration number	150529
Density, DIN 51757, 20°C	approx 0.84 g/cm³
Flash point, DIN EN ISO 2592, Cleveland open cup	≥ 85 °C
Kinematic viscosity, DIN EN ISO 3104 / DIN 51562-1 / ASTM D445 / ASTM D7042, 20°C	approx 500 mm²/
Kinematic viscosity, DIN EN ISO 3104 / DIN 51562-1 / ASTM D445 / ASTM D7042, 40°C	approx 185 mm²/s
Pour point, DIN ISO 3016	≤ -40 °C
Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx.	24 months

kluberfood-nh1-cx-4-220.pdf kluberfood-nh1-cx-4-220-en.pdf
